Photodétecteur davalanche APD 1064nm économies 500um TO46 photodiode
Photodétecteur davalanche APD 1064nm économies 500um TO46 photodiode, Photodétecteur davalanche APD 1064nm 500um TO46 photodiode commande
€304.11
SKU: 490079
Colour
- https://pg-cdn-a2.datacaciques.com/00/MTM0NDE3/22/04/24/gz3e832dm57x32x5/e1531c104d1d2d01.jpg" width="80%" height="auto
Title： 1064nm enhanced 500um TO46 APD avalanche photodetector photodiode Specification: Wavelength:400-1100nm
Operating voltage:0.95xVBR
Operating temperature:-40~+85℃
Storage temperature:-40~+100℃
Soldering temperature(time):260℃(10s)
The opto-eletronic characteritics:(T=22±3℃)
Response Spectrum: λ 400～1100 nm
Active diameter:φ — 500 μm
Reponsivity:Re λ=905nm, 1μw, M=1 0.57;λ=1064nm, 1μw, M=1
Multiplication gain:
λ=1064nm, 1μw, 0.8VBR 100
λ=1064nm, 1μw, 0.85VBR 200
Response time:Tr M=100,RL=50Ω,λ=1064nm . 2.5 nsFeatures: High reliability, low dark current
Top illumination Planar APD
High Gain up to M=400
Wavelength 400-1100nm

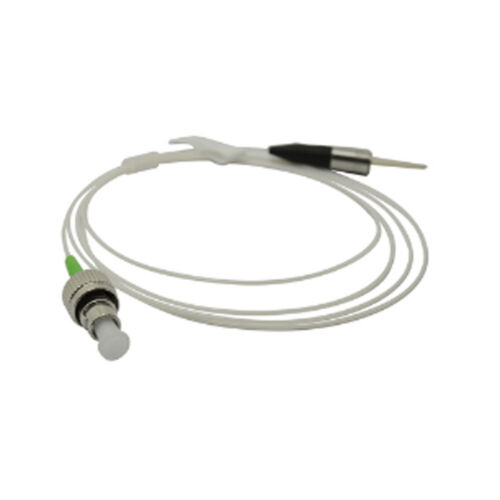

Hermetic TO46 Can or with receptacle
or with fiber couplingApplications: Ultra Weak pulse optical detecting
Laser lidar, laser range finding
Optical fiber sensor, OTDR
high resolution Optical Coherence Tomography
Science analysis and experimentPackage: 1x Avalanche Photodiode 1064nm 500um
https://pg-cdn-a2.datacaciques.com/00/MTM0NDE3/18/07/20/b416z340bji26y32/8c066e645503d48b.jpg" width="80%" height="auto
